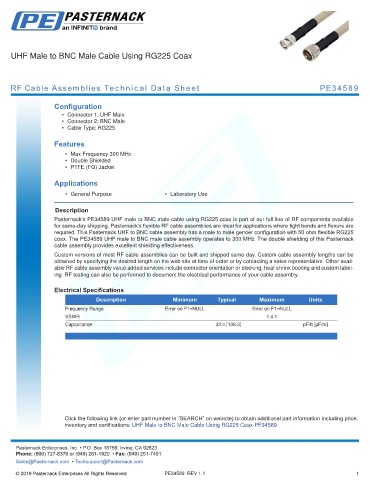

UHF Male to BNC Male Cable Using RG225 Coax

RF Cable Assemblies Technical Data Sheet PE34589

Configuration
• Connector 1: UHF Male
• Connector 2: BNC Male
• Cable Type: RG225

Features
• Max Frequency 300 MHz
• Double Shielded
• PTFE (FG) Jacket

Applications
• General Purpose • Laboratory Use
.
Description
Pasternack’s PE34589 UHF male to BNC male cable using RG225 coax is part of our full line of RF components available
for same-day shipping. Pasternack’s flexible RF cable assemblies are ideal for applications where tight bends and flexure are
required. This Pasternack UHF to BNC cable assembly has a male to male gender configuration with 50 ohm flexible RG225
coax. The PE34589 UHF male to BNC male cable assembly operates to 300 MHz. The double shielding of this Pasternack
cable assembly provides excellent shielding effectiveness.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range Error on F1=NULL Error on F1=NULL
VSWR 1.4:1
Capacitance 32.4 [106.3] pF/ft [pF/m]

.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: UHF Male to BNC Male Cable Using RG225 Coax PE34589
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE34589 REV 1.1 1
