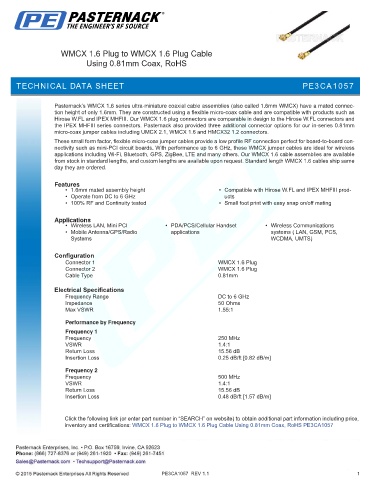

WMCX 1.6 Plug to WMCX 1.6 Plug Cable
Using 0.81mm Coax, RoHS

TECHNICAL D PE3CA1057
TECHNICAL DATA SHEETATA SHEET

Pasternack’s WMCX 1.6 series ultra-miniature coaxial cable assemblies (also called 1.6mm WMCX) have a mated connec-
tion height of only 1.6mm. They are constructed using a flexible micro-coax cable and are compatible with products such as
Hirose W.FL and IPEX MHFIII. Our WMCX 1.6 plug connectors are comparable in design to the Hirose W.FL connectors and
the IPEX MHFIII series connectors. Pasternack also provided three additional connector options for our in-series 0.81mm
micro-coax jumper cables including UMCX 2.1, WMCX 1.6 and HMCX32 1.2 connectors.
These small form factor, flexible micro-coax jumper cables provide a low profile RF connection perfect for board-to-board con-
nectivity such as mini-PCI circuit boards. With performance up to 6 GHz, these WMCX jumper cables are ideal for wireless
applications including Wi-Fi, Bluetooth, GPS, ZigBee, LTE and many others. Our WMCX 1.6 cable assemblies are available
from stock in standard lengths, and custom lengths are available upon request. Standard length WMCX 1.6 cables ship same
day they are ordered.

Features
• 1.6mm mated assembly height • Compatible with Hirose W.FL and IPEX MHFIII prod-
• Operate from DC to 6 GHz ucts
• 100% RF and Continuity tested • Small foot print with easy snap on/off mating

Applications
• Wireless LAN, Mini PCI • PDA/PCS/Cellular Handset • Wireless Communications
• Mobile Antenna/GPS/Radio applications systems ( LAN, GSM, PCS,
Systems WCDMA, UMTS)

Configuration
Connector 1 WMCX 1.6 Plug
Connector 2 WMCX 1.6 Plug
Cable Type 0.81mm

Electrical Specifications
Frequency Range DC to 6 GHz
Impedance 50 Ohms
Max VSWR 1.55:1

Performance by Frequency
Frequency 1
Frequency 250 MHz
VSWR 1.4:1
Return Loss 15.56 dB
Insertion Loss 0.25 dB/ft [0.82 dB/m]

Frequency 2
Frequency 500 MHz
VSWR 1.4:1
Return Loss 15.56 dB
Insertion Loss 0.48 dB/ft [1.57 dB/m]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: WMCX 1.6 Plug to WMCX 1.6 Plug Cable Using 0.81mm Coax, RoHS PE3CA1057

PE3CA1057 REV 1.1 1
