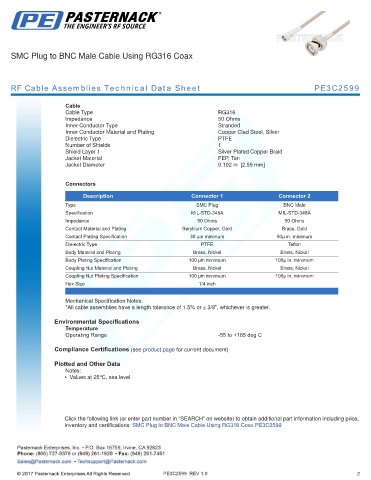

SMC Plug to BNC Male Cable Using RG316 Coax

RF Cable Assemblies Technical Data Sheet PE3C2599

Cable
Cable Type RG316
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Silver Plated Copper Braid
Jacket Material FEP, Tan
Jacket Diameter 0.102 in [2.59 mm]
.

Connectors

Description Connector 1 Connector 2
Type SMC Plug BNC Male
Specification MIL-STD-348A MIL-STD-348A
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Beryllium Copper, Gold Brass, Gold
Contact Plating Specification 30 µin minimum 50µ in. minimum
Dielectric Type PTFE Teflon
Body Material and Plating Brass, Nickel Brass, Nickel
Body Plating Specification 100 µin minimum 100µ in. minimum
Coupling Nut Material and Plating Brass, Nickel Brass, Nickel
Coupling Nut Plating Specification 100 µin minimum 100µ in. minimum
Hex Size 1/4 inch
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Environmental Specifications
Temperature
Operating Range -55 to +165 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMC Plug to BNC Male Cable Using RG316 Coax PE3C2599
