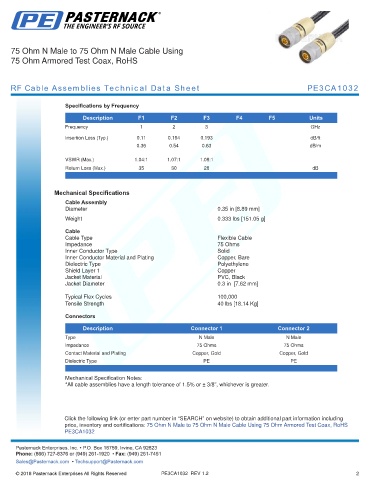

75 Ohm N Male to 75 Ohm N Male Cable Using
75 Ohm Armored Test Coax, RoHS

RF Cable Assemblies Technical Data Sheet PE3CA1032

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 1 2 3 GHz
Insertion Loss (Typ.) 0.11 0.164 0.193 dB/ft
0.36 0.54 0.63 dB/m

VSWR (Max.) 1.04:1 1.07:1 1.08:1
Return Loss (Max.) 35 30 28 dB
.

Mechanical Specifications
Cable Assembly
Diameter 0.35 in [8.89 mm]
.
Weight 0.333 lbs [151.05 g]
Cable
Cable Type Flexible Cable
Impedance 75 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper, Bare
Dielectric Type Polyethylene
Shield Layer 1 Copper
Jacket Material PVC, Black
Jacket Diameter 0.3 in [7.62 mm]
.
Typical Flex Cycles 100,000
Tensile Strength 40 lbs [18.14 Kg]
Connectors

Description Connector 1 Connector 2
Type N Male N Male
Impedance 75 Ohms 75 Ohms
Contact Material and Plating Copper, Gold Copper, Gold
Dielectric Type PE PE
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: 75 Ohm N Male to 75 Ohm N Male Cable Using 75 Ohm Armored Test Coax, RoHS
PE3CA1032 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3CA1032 REV 1.2 2
