75 Ohm SMB Plug Right Angle to 75 Ohm SMB Jack
Bulkhead Cable Using 95 Ohm RG180 Coax

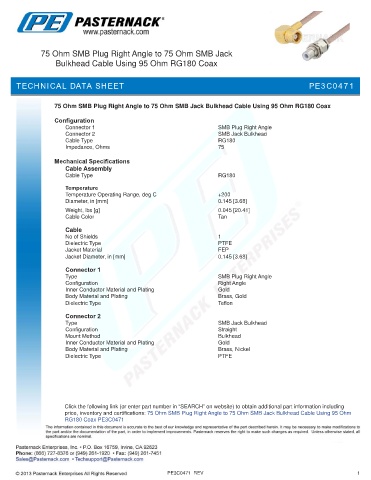

TECHNICAL D PE3C0471
TECHNICAL DATA SHEETATA SHEET

75 Ohm SMB Plug Right Angle to 75 Ohm SMB Jack Bulkhead Cable Using 95 Ohm RG180 Coax

Configuration
Connector 1 SMB Plug Right Angle
Connector 2 SMB Jack Bulkhead
Cable Type RG180
Impedance, Ohms 75
Mechanical Specifications
Cable Assembly
Cable Type RG180

Temperature
Temperature Operating Range, deg C +200
Diameter, in [mm] 0.145 [3.68]
.
Weight, lbs [g] 0.045 [20.41]
Cable Color Tan
Cable
No of Shields 1
Dielectric Type PTFE
Jacket Material FEP
Jacket Diameter, in [mm] 0.145 [3.68]

Connector 1
Type SMB Plug Right Angle
Configuration Right Angle
Inner Conductor Material and Plating Gold
Body Material and Plating Brass, Gold
Dielectric Type Teflon
Connector 2
Type SMB Jack Bulkhead
Configuration Straight
Mount Method Bulkhead
Inner Conductor Material and Plating Gold
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: 75 Ohm SMB Plug Right Angle to 75 Ohm SMB Jack Bulkhead Cable Using 95 Ohm
RG180 Coax PE3C0471

PE3C0471 REV 1
