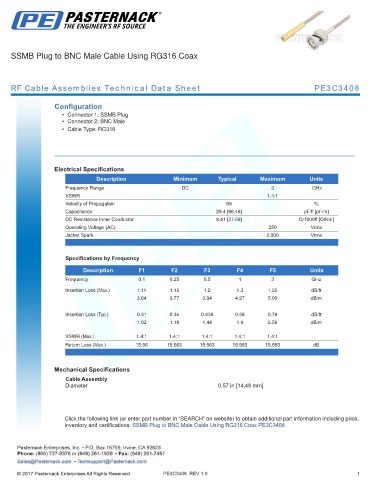

SSMB Plug to BNC Male Cable Using RG316 Coax

RF Cable Assemblies Technical Data Sheet PE3C3408

Configuration
• Connector 1: SSMB Plug
• Connector 2: BNC Male
• Cable Type: RG316

.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.4:1
Velocity of Propagation 69 %
Capacitance 29.4 [96.46] pF/ft [pF/m]
DC Resistance Inner Conductor 8.41 [27.59] Ω/1000ft [Ω/Km]
Operating Voltage (AC) 250 Vrms
Jacket Spark 2,000 Vrms
.

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 0.1 0.25 0.5 1 3 GHz
Insertion Loss (Max.) 1.11 1.15 1.2 1.3 1.55 dB/ft
3.64 3.77 3.94 4.27 5.09 dB/m

Insertion Loss (Typ.) 0.31 0.36 0.438 0.58 0.78 dB/ft
1.02 1.18 1.44 1.9 2.56 dB/m

VSWR (Max.) 1.4:1 1.4:1 1.4:1 1.4:1 1.4:1
Return Loss (Max.) 15.56 15.563 15.563 15.563 15.563 dB
.

Mechanical Specifications
Cable Assembly
Diameter 0.57 in [14.48 mm]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SSMB Plug to BNC Male Cable Using RG316 Coax PE3C3408

PE3C3408 REV 1.0 1
