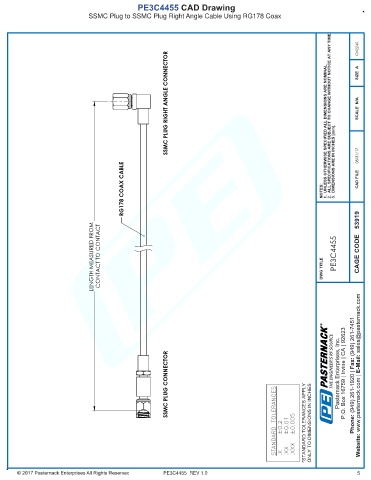

PE3C4455 CAD Drawing
SSMC Plug to SSMC Plug Right Angle Cable Using RG178 Coax

CN2245 SIZE A
SSMC PLUG RIGHT ANGLE CONNECTOR UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A

RG178 COAX CABLE NOTES: 1. 2. DIMENSIONS ARE IN INCHES [mm]. 3. 08/31/17 CAD FILE

LENGTH MEASURED FROM CONTACT TO CONTACT DWG TITLE PE3C4455 CAGE CODE 53919

R

SSMC PLUG CONNECTOR THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

STANDARD TOLERANCES .X ±0.2 .XX ±0.01 .XXX ±0.005 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES

PE3C4455 REV 1.0 5
