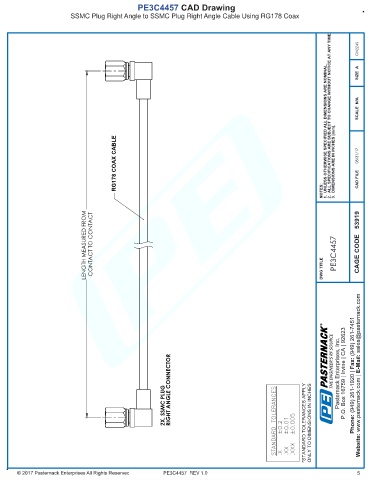

PE3C4457 CAD Drawing
SSMC Plug Right Angle to SSMC Plug Right Angle Cable Using RG178 Coax

ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
CN2245

UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SIZE A

SCALE N/A

RG178 COAX CABLE NOTES: 1. 2. DIMENSIONS ARE IN INCHES [mm]. 3. 08/31/17 CAD FILE

LENGTH MEASURED FROM CONTACT TO CONTACT DWG TITLE PE3C4457 CAGE CODE 53919

R THE ENGINEER'S RF SOURCE

2X, SSMC PLUG RIGHT ANGLE CONNECTOR STANDARD TOLERANCES .XX ±0.01 .XXX ±0.005 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

PE3C4457 REV 1.0 .X ±0.2 5
