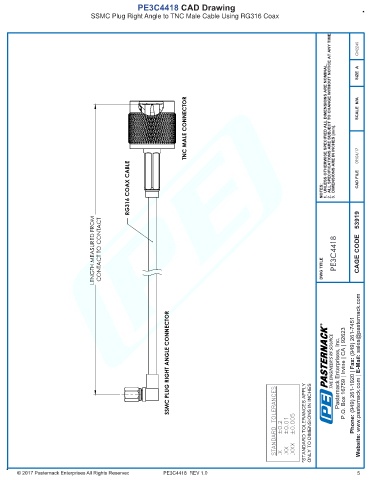

PE3C4418 CAD Drawing
SSMC Plug Right Angle to TNC Male Cable Using RG316 Coax
CN2245
SIZE A
TNC MALE CONNECTOR UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A 09/04/17
RG316 COAX CABLE NOTES: 1. 2. DIMENSIONS ARE IN INCHES [mm]. 3. CAD FILE
LENGTH MEASURED FROM CONTACT TO CONTACT DWG TITLE PE3C4418 CAGE CODE 53919
SSMC PLUG RIGHT ANGLE CONNECTOR R THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com
STANDARD TOLERANCES .X ±0.2 .XX ±0.01 .XXX ±0.005 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES
PE3C4418 REV 1.0 5
