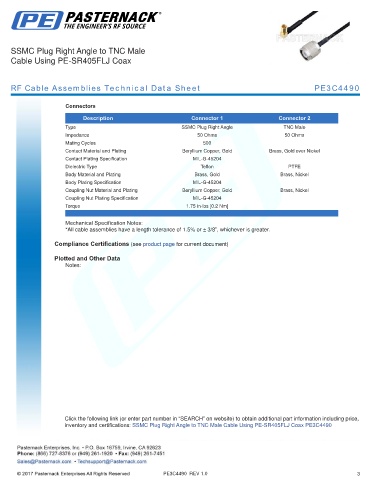

SSMC Plug Right Angle to TNC Male
Cable Using PE-SR405FLJ Coax

RF Cable Assemblies Technical Data Sheet PE3C4490

Connectors

Description Connector 1 Connector 2
Type SSMC Plug Right Angle TNC Male
Impedance 50 Ohms 50 Ohms
Mating Cycles 500
Contact Material and Plating Beryllium Copper, Gold Brass, Gold over Nickel
Contact Plating Specification MIL-G-45204
Dielectric Type Teflon PTFE
Body Material and Plating Brass, Gold Brass, Nickel
Body Plating Specification MIL-G-45204
Coupling Nut Material and Plating Beryllium Copper, Gold Brass, Nickel
Coupling Nut Plating Specification MIL-G-45204
Torque 1.75 in-lbs [0.2 Nm]
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SSMC Plug Right Angle to TNC Male Cable Using PE-SR405FLJ Coax PE3C4490

PE3C4490 REV 1.0 3
