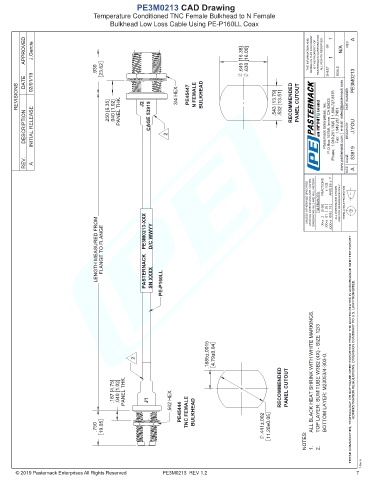

PE3M0213 CAD Drawing
Temperature Conditioned TNC Female Bulkhead to N Female
Bulkhead Low Loss Cable Using PE-P160LL Coax

APPROVED J.Garcia .645 [16.38] .630 [16.00] THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. SHEET OF 1 1 N/A REV A

.930 23.62 SCALE

DATE 02/01/19 PE3M0213
REVISIONS .250 [6.35] .040 [1.02] PANEL THK. J2 3/4 HEX PE45447 N FEMALE BULKHEAD .543 [13.79] .532 [13.51] RECOMMENDED PANEL CUTOUT PART NUMBER

DESCRIPTION INITIAL RELEASE CAGE 53919 2 Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY J.YOU

REV. A CAGE SIZE 53919 A

UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS .2 [5.08] .X=± ± 1/32 .01 [ .25 ] .XX=± ANGLES ± 1° .005 [ .13 ] .XXX=± ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

LENGTH MEASURED FROM FLANGE TO FLANGE PE3M0213-XXX PASTERNACK D/C WWYY SN XXXX PE-P160LL

.1885±.0015 4.79±0.04 THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

2 ALL BLACK HEAT SHRINK WITH WHITE MARKINGS.

.187 [4.75] .040 [1.02] PANEL THK. J1 .562 HEX RECOMMENDED PANEL CUTOUT TOP LAYER: SUMITUBE W3B2 (4X) - SIZE 12/3 BOTTOM LAYER: M23053/4-303-0.

PE45444 TNC FEMALE BULKHEAD
.750 19.05 .441±.002 11.20±0.05 -
Pasternack does not make
NOTES: 1. 2.
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

T-Rev.A
PE3M0213 REV 1.2 7
