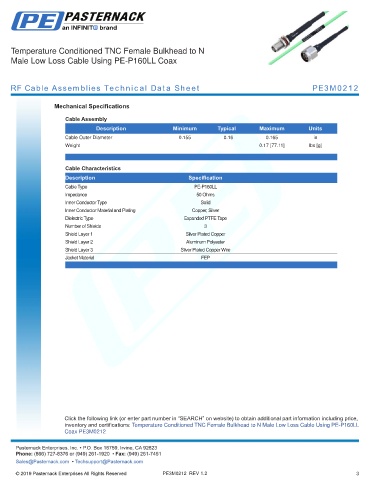

Temperature Conditioned TNC Female Bulkhead to N
Male Low Loss Cable Using PE-P160LL Coax
RF Cable Assemblies Technical Data Sheet PE3M0212
Mechanical Specifications
Cable Assembly
Description Minimum Typical Maximum Units
Cable Outer Diameter 0.155 0.16 0.165 in
Weight 0.17 [77.11] lbs [g]
.
Cable Characteristics
Description Specification
Cable Type PE-P160LL
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper, Silver
Dielectric Type Expanded PTFE Tape
Number of Shields 3
Shield Layer 1 Silver Plated Copper
Shield Layer 2 Aluminum Polyester
Shield Layer 3 Silver Plated Copper Wire
Jacket Material FEP
.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Temperature Conditioned TNC Female Bulkhead to N Male Low Loss Cable Using PE-P160LL
Coax PE3M0212 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE3M0212 REV 1.2 3
