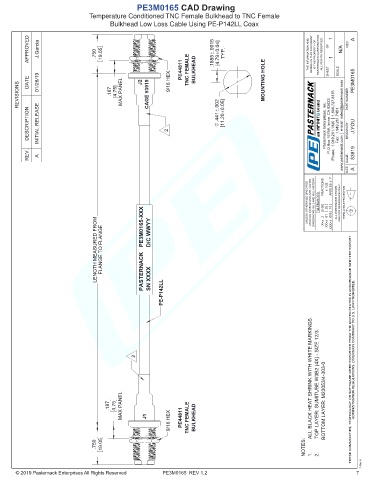

PE3M0165 CAD Drawing
Temperature Conditioned TNC Female Bulkhead to TNC Female
Bulkhead Low Loss Cable Using PE-P142LL Coax

APPROVED J.Garcia .750 19.05 .0015 0.04] TYP. THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 N/A REV A

PE44811 TNC FEMALE BULKHEAD .1885 [4.79 SHEET OF 1 SCALE

REVISIONS DATE 01/28/19 .187 [4.75] MAX PANEL J2 CAGE 53919 9/16 HEX .002 0.05] MOUNTING HOLE PART NUMBER PE3M0165

DESCRIPTION INITIAL RELEASE 2 .441 [11.20 Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY J.YOU

REV. A CAGE SIZE 53919 A

UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS .2 [5.08] .X=± ± 1/32 .01 [ .25 ] .XX=± ANGLES ± 1° .005 [ .13 ] .XXX=± ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

LENGTH MEASURED FROM FLANGE TO FLANGE PE3M0165-XXX D/C WWYY

PASTERNACK

SN XXXX

PE-P142LL

2 ALL BLACK HEAT SHRINK WITH WHITE MARKINGS. THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

.187 4.75 MAX PANEL TOP LAYER: SUMITUBE W3B2 (4X) - SIZE 12/3. BOTTOM LAYER: M23053/4-303-0
9/16 HEX PE44811 TNC FEMALE BULKHEAD
J1

Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
.750 19.05 NOTES:

1. 2.
T-Rev.A
PE3M0165 REV 1.2 7
