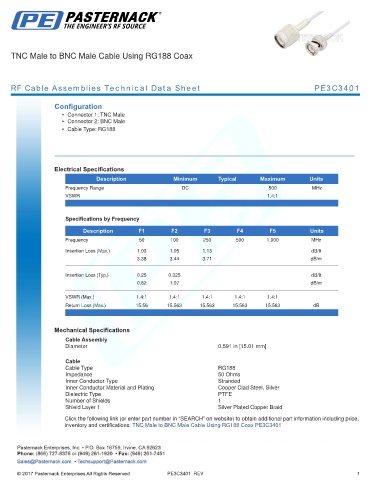

TNC Male to BNC Male Cable Using RG188 Coax

RF Cable Assemblies Technical Data Sheet PE3C3401

Configuration
• Connector 1: TNC Male
• Connector 2: BNC Male
• Cable Type: RG188

.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 500 MHz
VSWR 1.4:1
.

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 50 100 250 500 1,000 MHz
Insertion Loss (Max.) 1.03 1.05 1.13 dB/ft
3.38 3.44 3.71 dB/m

Insertion Loss (Typ.) 0.25 0.325 dB/ft
0.82 1.07 dB/m
VSWR (Max.) 1.4:1 1.4:1 1.4:1 1.4:1 1.4:1
Return Loss (Max.) 15.56 15.563 15.563 15.563 15.563 dB
.

Mechanical Specifications
Cable Assembly
Diameter 0.591 in [15.01 mm]
.
Cable
Cable Type RG188
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Silver Plated Copper Braid

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male to BNC Male Cable Using RG188 Coax PE3C3401

PE3C3401 REV 1
