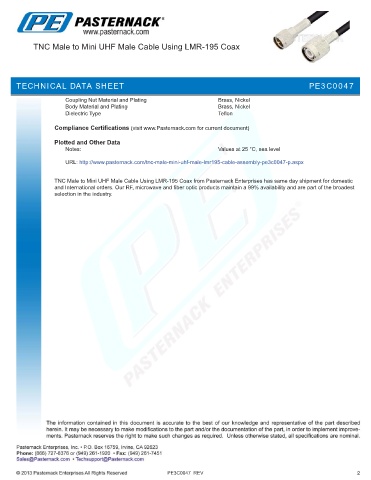

TNC Male to Mini UHF Male Cable Using LMR-195 Coax

TECHNICAL D PE3C0047
TECHNICAL DATA SHEETATA SHEET

Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
Plotted and Other Data
Notes: Values at 25 °C, sea level

URL: http://www.pasternack.com/tnc-male-mini-uhf-male-lmr195-cable-assembly-pe3c0047-p.aspx

TNC Male to Mini UHF Male Cable Using LMR-195 Coax from Pasternack Enterprises has same day shipment for domestic
and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest
selection in the industry.

PE3C0047 REV 2
