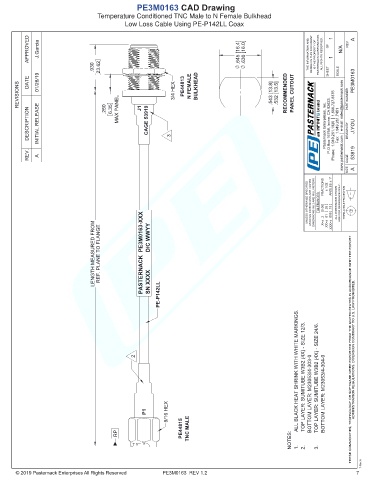

PE3M0163 CAD Drawing
Temperature Conditioned TNC Male to N Female Bulkhead
Low Loss Cable Using PE-P142LL Coax

APPROVED J.Garcia .645 [16.4] .630 [16.0] THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 1 N/A REV A

.930 23.62 SHEET OF SCALE PE3M0163

REVISIONS DATE 01/28/19 .250 6.35 J1 3/4 HEX PE44813 N FEMALE BULKHEAD .543 [13.8] .532 [13.5] RECOMMENDED PANEL CUTOUT PART NUMBER

DESCRIPTION INITIAL RELEASE MAX PANEL CAGE 53919 3 Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY J.YOU

REV. A CAGE SIZE 53919 A

UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS .2 [5.08] .X=± ± 1/32 .01 [ .25 ] .XX=± ANGLES ± 1° .005 [ .13 ] .XXX=± ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

LENGTH MEASURED FROM REF. PLANE TO FLANGE PE3M0163-XXX D/C WWYY

PASTERNACK

SN XXXX
PE-P142LL

2 ALL BLACK HEAT SHRINK WITH WHITE MARKINGS. TOP LAYER: SUMITUBE W3B2 (4X) - SIZE 12/3. THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

9/16 HEX
P1 BOTTOM LAYER: M23053/4-303-0 3. TOP LAYER: SUMITUBE W3B2 (4X) - SIZE 24/6. BOTTOM LAYER: M23053/4-304-0

RP PE44815 TNC MALE Pasternack does not make -
NOTES:
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
2.
1.
T-Rev.A
PE3M0163 REV 1.2 7
