Page 617 - SMB to 95 Ohm 3/4"-20 Twinax RF Cable Assembly Datasheets

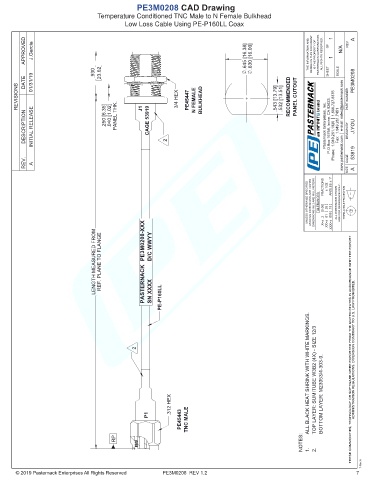

PE3M0208 CAD Drawing
Temperature Conditioned TNC Male to N Female Bulkhead
Low Loss Cable Using PE-P160LL Coax

APPROVED J.Garcia .645 [16.38] .630 [16.00] THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. SHEET OF 1 1 N/A REV A

DATE 01/31/19 .930 23.62 SCALE PE3M0208
REVISIONS J1 3/4 HEX PE45447 N FEMALE BULKHEAD .543 [13.79] .532 [13.51] RECOMMENDED PANEL CUTOUT PART NUMBER

DESCRIPTION INITIAL RELEASE .250 [6.35] .040 [1.02] PANEL THK. CAGE 53919 2 Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY J.YOU

REV. A CAGE SIZE 53919 A

UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS .2 [5.08] .X=± ± 1/32 .01 [ .25 ] .XX=± ANGLES ± 1° .005 [ .13 ] .XXX=± ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

LENGTH MEASURED FROM REF. PLANE TO FLANGE PE3M0208-XXX PASTERNACK D/C WWYY SN XXXX PE-P160LL

2 ALL BLACK HEAT SHRINK WITH WHITE MARKINGS. THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

.312 HEX TOP LAYER: SUMITUBE W3B2 (4X) - SIZE 12/3 BOTTOM LAYER: M23053/4-303-0.

PE45443 TNC MALE
P1

Pasternack does not make
NOTES: 1. 2.
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation. -
RP

T-Rev.A
PE3M0208 REV 1.2 7
