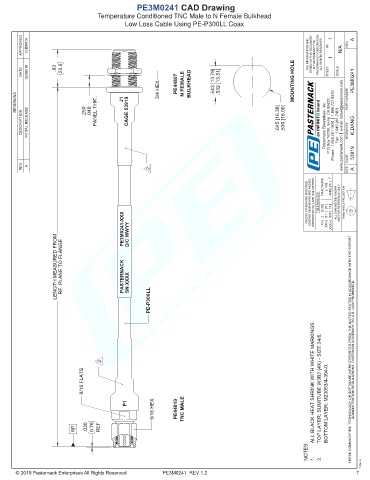

PE3M0241 CAD Drawing
Temperature Conditioned TNC Male to N Female Bulkhead
Low Loss Cable Using PE-P300LL Coax

APPROVED D.BIRCH 1 N/A REV A

THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. SHEET OF 1
DATE 02/08/19 .93 23.6 SCALE PE3M0241

3/4 HEX PE44807 N FEMALE BULKHEAD .543 [13.79] .532 [13.51] MOUNTING HOLE
REVISIONS .250 .040 PANEL THK'. J1 CAGE 53919 PART NUMBER

DESCRIPTION INITIAL RELEASE .645 [16.38] .630 [16.00] Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY K.DANG

REV. A 2 CAGE SIZE 53919 A

UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS .2 [5.08] .X=± ± 1/32 .01 [ .25 ] .XX=± ANGLES ± 1° .005 [ .13 ] .XXX=± ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

LENGTH MEASURED FROM RF. PLANE TO FLANGE PASTERNACK PE3M0241-XXX SN XXXX D/C WWYY

PE-P300LL

2 THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.
9/16 FLATS ALL BLACK HEAT SHRINK WITH WHITE MARKINGS. TOP LAYER: SUMITUBE W3B2 (4X) - SIZE 24/6.

9/16 HEX PE44810 TNC MALE
P1 BOTTOM LAYER: M23053/4-304-0.

RP .030 0.76 REF Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
NOTES:

2.
1.
T-Rev.A
PE3M0241 REV 1.2 7
