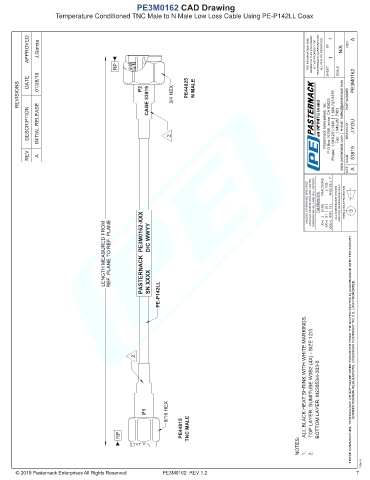

PE3M0162 CAD Drawing
Temperature Conditioned TNC Male to N Male Low Loss Cable Using PE-P142LL Coax

APPROVED J.Garcia THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 1 N/A REV A

RP SHEET OF SCALE

REVISIONS DATE 01/28/19 P2 CAGE 53919 3/4 HEX PE44825 N MALE PART NUMBER PE3M0162

DESCRIPTION INITIAL RELEASE 2 Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY J.YOU

REV. A CAGE SIZE 53919 A

UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS .2 [5.08] .X=± ± 1/32 .01 [ .25 ] .XX=± ANGLES ± 1° .005 [ .13 ] .XXX=± ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

LENGTH MEASURED FROM REF. PLANE TO REF. PLANE PE3M0162-XXX D/C WWYY

PASTERNACK

SN XXXX
PE-P142LL

2 ALL BLACK HEAT SHRINK WITH WHITE MARKINGS. TOP LAYER: SUMITUBE W3B2 (4X) - SIZE 12/3. THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

9/16 HEX
P1 BOTTOM LAYER: M23053/4-303-0
TNC MALE
PE44815
Pasternack does not make
RP
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation. -
NOTES: 1. 2.

T-Rev.A
PE3M0162 REV 1.2 7
