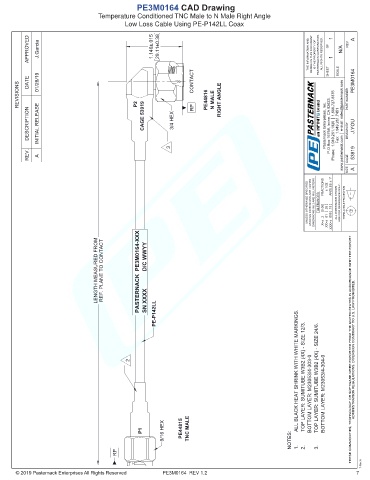

PE3M0164 CAD Drawing
Temperature Conditioned TNC Male to N Male Right Angle
Low Loss Cable Using PE-P142LL Coax
1 A
APPROVED J.Garcia 1.146±.015 29.11±0.38 THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. SHEET OF 1 SCALE N/A REV

REVISIONS DATE 01/28/19 P2 CONTACT RP PE44816 N MALE RIGHT ANGLE PART NUMBER PE3M0164

DESCRIPTION INITIAL RELEASE CAGE 53919 3/4 HEX Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY J.YOU

3
REV. A CAGE SIZE 53919 A

UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS .2 [5.08] .X=± ± 1/32 .01 [ .25 ] .XX=± ANGLES ± 1° .005 [ .13 ] .XXX=± ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

LENGTH MEASURED FROM REF. PLANE TO CONTACT PE3M0164-XXX D/C WWYY

PASTERNACK

SN XXXX
PE-P142LL

BOTTOM LAYER: M23053/4-303-0 3. TOP LAYER: SUMITUBE W3B2 (4X) - SIZE 24/6. BOTTOM LAYER: M23053/4-304-0
2 ALL BLACK HEAT SHRINK WITH WHITE MARKINGS. TOP LAYER: SUMITUBE W3B2 (4X) - SIZE 12/3. THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

P1 9/16 HEX PE44815 TNC MALE Pasternack does not make -
NOTES:
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

RP 1. 2.
T-Rev.A
PE3M0164 REV 1.2 7
