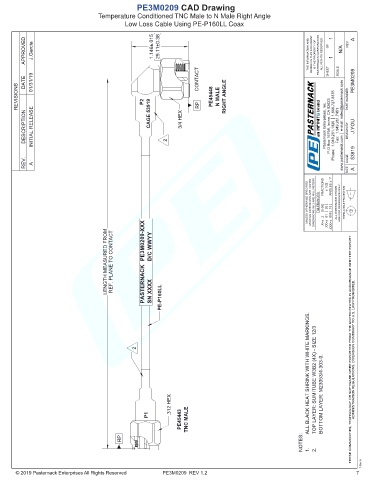

PE3M0209 CAD Drawing
Temperature Conditioned TNC Male to N Male Right Angle
Low Loss Cable Using PE-P160LL Coax
1 A
APPROVED J.Garcia 1.146±.015 29.11±0.38 THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. SHEET OF 1 N/A REV
DATE 01/31/19 CONTACT SCALE PE3M0209
REVISIONS P2 RP PE45448 N MALE RIGHT ANGLE PART NUMBER
DESCRIPTION INITIAL RELEASE CAGE 53919 2 3/4 HEX Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY J.YOU
REV. A CAGE SIZE 53919 A
UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS .2 [5.08] .X=± ± 1/32 .01 [ .25 ] .XX=± ANGLES ± 1° .005 [ .13 ] .XXX=± ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION
LENGTH MEASURED FROM REF. PLANE TO CONTACT PE3M0209-XXX PASTERNACK D/C WWYY SN XXXX PE-P160LL
2 ALL BLACK HEAT SHRINK WITH WHITE MARKINGS. THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.
.312 HEX TOP LAYER: SUMITUBE W3B2 (4X) - SIZE 12/3 BOTTOM LAYER: M23053/4-303-0.
PE45443 TNC MALE
P1
Pasternack does not make
NOTES: 1. 2.
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation. -
RP
T-Rev.A
PE3M0209 REV 1.2 7
