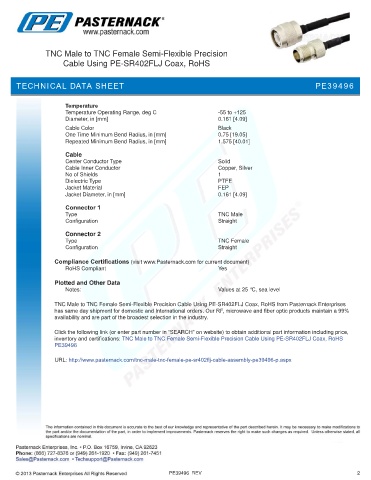

TNC Male to TNC Female Semi-Flexible Precision
Cable Using PE-SR402FLJ Coax, RoHS

TECHNICAL D PE39496
TECHNICAL DATA SHEETATA SHEET

Temperature
Temperature Operating Range, deg C -55 to +125
Diameter, in [mm] 0.161 [4.09]
.
Cable Color Black
One Time Minimum Bend Radius, in [mm] 0.75 [19.05]
Repeated Minimum Bend Radius, in [mm] 1.575 [40.01]

Cable
Center Conductor Type Solid
Cable Inner Conductor Copper, Silver
No of Shields 1
Dielectric Type PTFE
Jacket Material FEP
Jacket Diameter, in [mm] 0.161 [4.09]

Connector 1
Type TNC Male
Configuration Straight
Connector 2
Type TNC Female
Configuration Straight

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

TNC Male to TNC Female Semi-Flexible Precision Cable Using PE-SR402FLJ Coax, RoHS from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male to TNC Female Semi-Flexible Precision Cable Using PE-SR402FLJ Coax, RoHS
PE39496

URL: http://www.pasternack.com/tnc-male-tnc-female-pe-sr402flj-cable-assembly-pe39496-p.aspx

PE39496 REV 2
