Temperature Conditioned TNC Male to TNC Female
Bulkhead Low Loss Cable Using PE-P142LL Coax

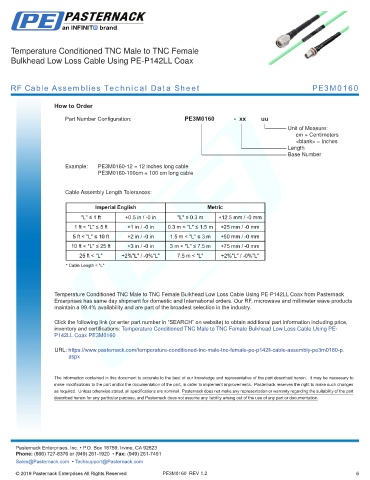

RF Cable Assemblies Technical Data Sheet PE3M0160

How to Order

Part Number Configuration: PE3M0160 - xx uu
| | | | | Unit of Measure:
cm = Centimeters
|
| <blank> = Inches
| | Length
Base Number

Example: PE3M0160-12 = 12 inches long cable
PE3M0160-100cm = 100 cm long cable

Cable Assembly Length Tolerances:

Temperature Conditioned TNC Male to TNC Female Bulkhead Low Loss Cable Using PE-P142LL Coax from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products
maintain a 99.4% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Temperature Conditioned TNC Male to TNC Female Bulkhead Low Loss Cable Using PE-
P142LL Coax PE3M0160

URL: https://www.pasternack.com/temperature-conditioned-tnc-male-tnc-female-pe-p142ll-cable-assembly-pe3m0160-p.
aspx

-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3M0160 REV 1.2 6
