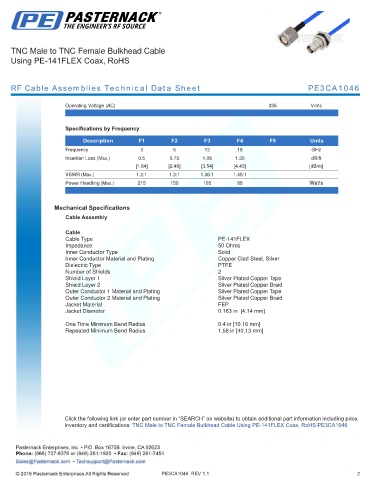

TNC Male to TNC Female Bulkhead Cable
Using PE-141FLEX Coax, RoHS

RF Cable Assemblies Technical Data Sheet PE3CA1046

Operating Voltage (AC) 335 Vrms
.

Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency 3 6 12 18 GHz
Insertion Loss (Max.) 0.5 0.75 1.08 1.35 dB/ft
[1.64] [2.46] [3.54] [4.43] [dB/m]
VSWR (Max.) 1.2:1 1.3:1 1.35:1 1.45:1
Power Handling (Max.) 215 150 105 88 Watts
.

Mechanical Specifications
Cable Assembly
.
Cable
Cable Type PE-141FLEX
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 2
Shield Layer 1 Silver Plated Copper Tape
Shield Layer 2 Silver Plated Copper Braid
Outer Conductor 1 Material and Plating Silver Plated Copper Tape
Outer Conductor 2 Material and Plating Silver Plated Copper Braid
Jacket Material FEP
Jacket Diameter 0.163 in [4.14 mm]
.
One Time Minimum Bend Radius 0.4 in [10.16 mm]
Repeated Minimum Bend Radius 1.58 in [40.13 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male to TNC Female Bulkhead Cable Using PE-141FLEX Coax, RoHS PE3CA1046

PE3CA1046 REV 1.1 2
