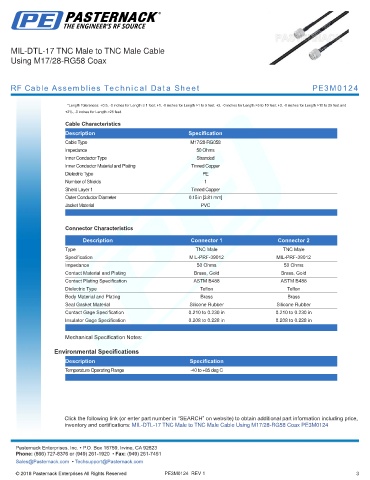

MIL-DTL-17 TNC Male to TNC Male Cable
Using M17/28-RG58 Coax

RF Cable Assemblies Technical Data Sheet PE3M0124

*Length Tolerances: +0.5, -0 inches for Length ≤ 1 foot; +1, -0 inches for Length >1 to 5 feet; +2, -0 inches for Length >5 to 10 feet; +3, -0 inches for Length >10 to 25 feet and
+2%, -0 inches for Length >25 feet.

Cable Characteristics
Description Specification
Cable Type M17/28-RG058
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Tinned Copper
Dielectric Type PE
Number of Shields 1
Shield Layer 1 Tinned Copper
Outer Conductor Diameter 0.15 in [3.81 mm]
Jacket Material PVC
.

Connector Characteristics

Description Connector 1 Connector 2
Type TNC Male TNC Male
Specification MIL-PRF-39012 MIL-PRF-39012
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Brass, Gold Brass, Gold
Contact Plating Specification ASTM B488 ASTM B488
Dielectric Type Teflon Teflon
Body Material and Plating Brass Brass
Seal Gasket Material Silicone Rubber Silicone Rubber
Contact Gage Specification 0.210 to 0.230 in 0.210 to 0.230 in
Insulator Gage Specification 0.208 to 0.228 in 0.208 to 0.228 in
.
Mechanical Specification Notes:

Environmental Specifications
Description Specification
Temperature Operating Range -40 to +85 deg C
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MIL-DTL-17 TNC Male to TNC Male Cable Using M17/28-RG58 Coax PE3M0124
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3M0124 REV 1 3
