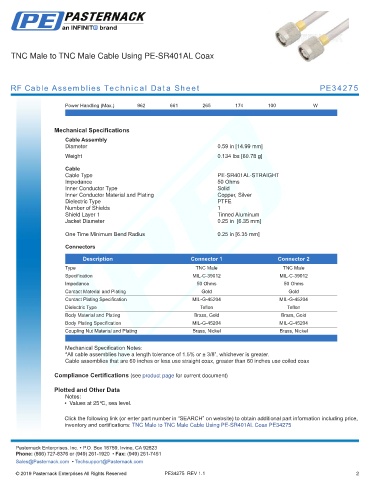

TNC Male to TNC Male Cable Using PE-SR401AL Coax

RF Cable Assemblies Technical Data Sheet PE34275

Power Handling (Max.) 962 661 265 174 100 W
.

Mechanical Specifications
Cable Assembly
Diameter 0.59 in [14.99 mm]
.
Weight 0.134 lbs [60.78 g]
Cable
Cable Type PE-SR401AL-STRAIGHT
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper, Silver
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Tinned Aluminum
Jacket Diameter 0.25 in [6.35 mm]
.
One Time Minimum Bend Radius 0.25 in [6.35 mm]
Connectors

Description Connector 1 Connector 2
Type TNC Male TNC Male
Specification MIL-C-39012 MIL-C-39012
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Gold Gold
Contact Plating Specification MIL-G-45204 MIL-G-45204
Dielectric Type Teflon Teflon
Body Material and Plating Brass, Gold Brass, Gold
Body Plating Specification MIL-G-45204 MIL-G-45204
Coupling Nut Material and Plating Brass, Nickel Brass, Nickel
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.
Cable assemblies that are 60 inches or less use straight coax, greater than 60 inches use coiled coax

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male to TNC Male Cable Using PE-SR401AL Coax PE34275
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE34275 REV 1.1 2
