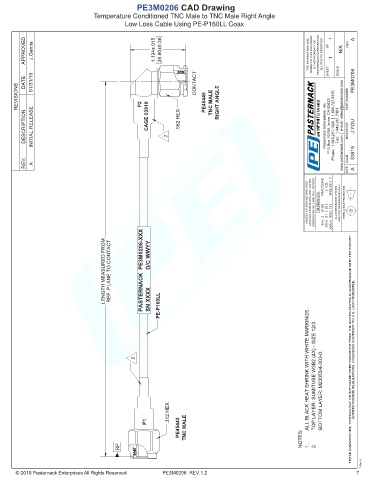

PE3M0206 CAD Drawing
Temperature Conditioned TNC Male to TNC Male Right Angle
Low Loss Cable Using PE-P160LL Coax
1 A
APPROVED J.Garcia 1.134±.015 28.80±0.38 THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 N/A REV
SHEET OF SCALE
DATE 01/31/19 CONTACT PE3M0206
REVISIONS P2 PE45445 TNC MALE RIGHT ANGLE PART NUMBER
DESCRIPTION INITIAL RELEASE CAGE 53919 2 .562 HEX Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY J.YOU
REV. A CAGE SIZE 53919 A
UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS .2 [5.08] .X=± ± 1/32 .01 [ .25 ] .XX=± ANGLES ± 1° .005 [ .13 ] .XXX=± ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION
LENGTH MEASURED FROM REF. PLANE TO CONTACT PE3M0206-XXX PASTERNACK D/C WWYY SN XXXX PE-P160LL
BOTTOM LAYER: M23053/4-303-0.
2 ALL BLACK HEAT SHRINK WITH WHITE MARKINGS. TOP LAYER: SUMITUBE W3B2 (4X) - SIZE 12/3 THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.
.312 HEX
P1 PE45443 TNC MALE -
NOTES:
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
RP 1. 2.
T-Rev.A
PE3M0206 REV 1.2 7
