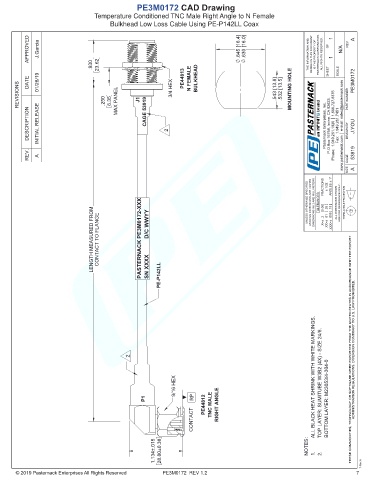

PE3M0172 CAD Drawing
Temperature Conditioned TNC Male Right Angle to N Female
Bulkhead Low Loss Cable Using PE-P142LL Coax

APPROVED J.Garcia .645 [16.4] .630 [16.0] THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 N/A REV A

.930 23.62 PE44813 N FEMALE BULKHEAD SHEET OF 1 SCALE

REVISIONS DATE 01/28/19 .250 6.35 MAX PANEL J1 3/4 HEX .543 [13.8] .532 [13.5] MOUNTING HOLE PART NUMBER PE3M0172

DESCRIPTION INITIAL RELEASE CAGE 53919 2 Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY J.YOU

REV. A FRACTIONS ± 1/32 ANGLES ± 1° CAGE SIZE 53919 A

LENGTH MEASURED FROM CONTACT TO FLANGE PE3M0172-XXX PASTERNACK D/C WWYY SN XXXX PE-P142LL UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: .2 [5.08] .X=± .01 [ .25 ] .XX=± .005 [ .13 ] .XXX=± ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

2 THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

9/16 HEX ALL BLACK HEAT SHRINK WITH WHITE MARKINGS. TOP LAYER: SUMITUBE W3B2 (4X) - SIZE 24/6.

P1 RP PE44812 TNC MALE RIGHT ANGLE BOTTOM LAYER: M23053/4-304-0
CONTACT

Pasternack does not make

any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation. -
1.134±.015 28.80±0.38 NOTES: 1. 2.

T-Rev.A
PE3M0172 REV 1.2 7
