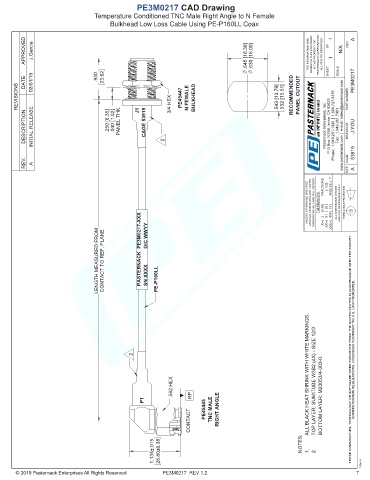

PE3M0217 CAD Drawing
Temperature Conditioned TNC Male Right Angle to N Female
Bulkhead Low Loss Cable Using PE-P160LL Coax

APPROVED J.Garcia .645 [16.38] .630 [16.00] THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 1 N/A REV A

SHEET OF SCALE
DATE 02/01/19 .930 23.62 PE3M0217
REVISIONS J1 3/4 HEX PE45447 N FEMALE BULKHEAD .543 [13.79] .532 [13.51] RECOMMENDED PANEL CUTOUT PART NUMBER

DESCRIPTION INITIAL RELEASE .250 [6.35] .040 [1.02] PANEL THK. CAGE 53919 2 Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY J.YOU

REV. A CAGE SIZE 53919 A

UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS .2 [5.08] .X=± ± 1/32 .01 [ .25 ] .XX=± ANGLES ± 1° .005 [ .13 ] .XXX=± ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

PE3M0217-XXX

LENGTH MEASURED FROM CONTACT TO REF. PLANE PASTERNACK D/C WWYY SN XXXX PE-P160LL

2 THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

.562 HEX ALL BLACK HEAT SHRINK WITH WHITE MARKINGS. TOP LAYER: SUMITUBE W3B2 (4X) - SIZE 12/3

P1 RP PE45445 TNC MALE RIGHT ANGLE BOTTOM LAYER: M23053/4-303-0.
CONTACT -

Pasternack does not make

any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
1.134±.015 28.80±0.38 NOTES: 1. 2.

T-Rev.A
PE3M0217 REV 1.2 7
