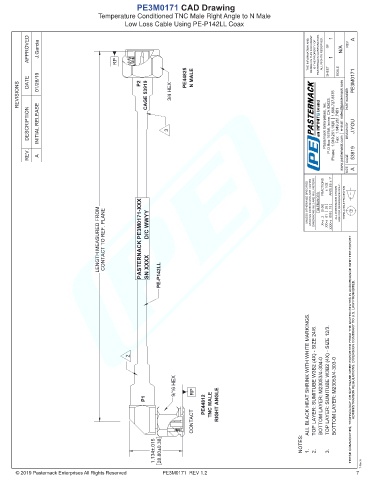

PE3M0171 CAD Drawing
Temperature Conditioned TNC Male Right Angle to N Male
Low Loss Cable Using PE-P142LL Coax

APPROVED J.Garcia RP THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. SHEET OF 1 1 SCALE N/A REV A

REVISIONS DATE 01/28/19 P2 CAGE 53919 3/4 HEX PE44825 N MALE PART NUMBER PE3M0171

DESCRIPTION INITIAL RELEASE 3 Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY J.YOU

REV. A FRACTIONS ± 1/32 ANGLES ± 1° CAGE SIZE 53919 A

LENGTH MEASURED FROM CONTACT TO REF. PLANE PASTERNACK PE3M0171-XXX D/C WWYY SN XXXX PE-P142LL UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: .2 [5.08] .X=± .01 [ .25 ] .XX=± .005 [ .13 ] .XXX=± ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

2 THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

9/16 HEX RP ALL BLACK HEAT SHRINK WITH WHITE MARKINGS. TOP LAYER: SUMITUBE W3B2 (4X) - SIZE 24/6. 3. TOP LAYER: SUMITUBE W3B2 (4X) - SIZE 12/3.

P1 PE44812 TNC MALE RIGHT ANGLE BOTTOM LAYER: M23053/4-304-0 BOTTOM LAYER: M23053/4-303-0
CONTACT -

Pasternack does not make

any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
1.134±.015 28.80±0.38 NOTES: 1. 2.
