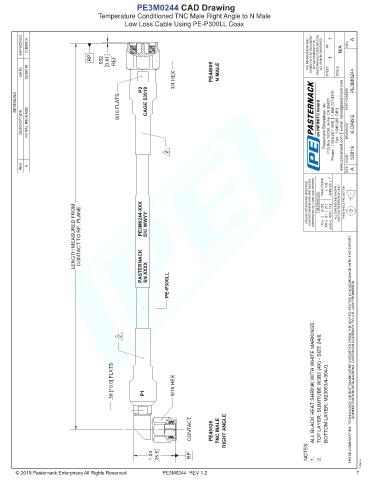

PE3M0244 CAD Drawing
Temperature Conditioned TNC Male Right Angle to N Male
Low Loss Cable Using PE-P300LL Coax

APPROVED D.BIRCH 1 N/A REV A

RP .032 0.81 REF THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. SHEET OF 1

DATE 02/08/19 3/4 HEX PE44809 N MALE SCALE PE3M0244

P2
REVISIONS 9/16 FLATS CAGE 53919 PART NUMBER

DESCRIPTION INITIAL RELEASE Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY K.DANG

2 CAGE 53919
REV. A FRACTIONS ± 1/32 ANGLES ± 1° SIZE A

LENGTH MEASURED FROM CONTACT TO RF. PLANE PASTERNACK PE3M0244-XXX SN XXXX D/C WWYY UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: .2 [5.08] .X=± .01 [ .25 ] .XX=± .005 [ .13 ] .XXX=± ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

PE-P300LL

2 THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

.39 [10.0] FLATS P1 9/16 HEX ALL BLACK HEAT SHRINK WITH WHITE MARKINGS. TOP LAYER: SUMITUBE W3B2 (4X) - SIZE 24/6. BOTTOM LAYER: M23053/4-304-0.

CONTACT PE45526 TNC MALE RIGHT ANGLE Pasternack does not make -

any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

1.04 26.5 RP NOTES: 1. 2.

T-Rev.A
PE3M0244 REV 1.2 7
