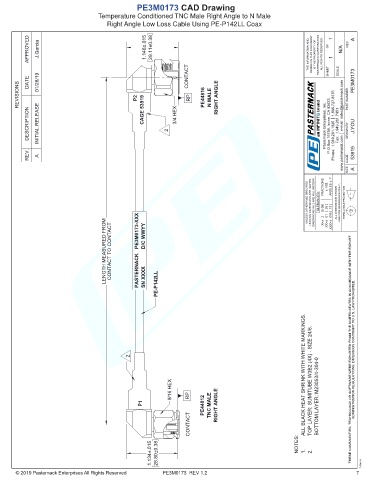

PE3M0173 CAD Drawing
Temperature Conditioned TNC Male Right Angle to N Male
Right Angle Low Loss Cable Using PE-P142LL Coax
1 A
APPROVED J.Garcia 1.146±.015 29.11±0.38 THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. N/A REV
CONTACT SHEET OF 1 SCALE
REVISIONS DATE 01/28/19 P2 RP PE44816 N MALE RIGHT ANGLE PART NUMBER PE3M0173
DESCRIPTION INITIAL RELEASE CAGE 53919 2 3/4 HEX Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY J.YOU
REV. A CAGE SIZE 53919 A
UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS .2 [5.08] .X=± ± 1/32 .01 [ .25 ] .XX=± ANGLES ± 1° .005 [ .13 ] .XXX=± ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION
LENGTH MEASURED FROM CONTACT TO CONTACT PE3M0173-XXX PASTERNACK D/C WWYY SN XXXX PE-P142LL
2 THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.
9/16 HEX RP ALL BLACK HEAT SHRINK WITH WHITE MARKINGS. TOP LAYER: SUMITUBE W3B2 (4X) - SIZE 24/6.
P1 PE44812 TNC MALE RIGHT ANGLE BOTTOM LAYER: M23053/4-304-0
CONTACT -
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
NOTES:
1.134±.015 28.80±0.38 1. 2.
T-Rev.A
PE3M0173 REV 1.2 7
