Temperature Conditioned TNC Male Right Angle to TNC
Male Right Angle Low Loss Cable Using PE-P142LL Coax

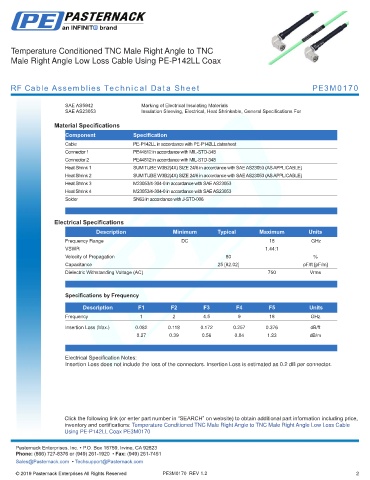

RF Cable Assemblies Technical Data Sheet PE3M0170

SAE AS5942 Marking of Electrical Insulating Materials
SAE AS23053 Insulation Sleeving, Electrical, Heat Shrinkable, General Specifications For

Material Specifications
Component Specification
Cable PE-P142LL in accordance with PE-P142LL datasheet
Connector 1 PE44812 in accordance with MIL-STD-348
Connector 2 PE44812 in accordance with MIL-STD-348
Heat Shrink 1 SUMITUBE W3B2(4X) SIZE 24/6 in accordance with SAE AS23053 (AS APPLICABLE)
Heat Shrink 2 SUMITUBE W3B2(4X) SIZE 24/6 in accordance with SAE AS23053 (AS APPLICABLE)
Heat Shrink 3 M23053/4-304-0 in accordance with SAE AS23053
Heat Shrink 4 M23053/4-304-0 in accordance with SAE AS23053
Solder SN63 in accordance with J-STD-006

.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.44:1
Velocity of Propagation 80 %
Capacitance 25 [82.02] pF/ft [pF/m]
Dielectric Withstanding Voltage (AC) 750 Vrms
.
Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 1 2 4.5 9 18 GHz
Insertion Loss (Max.) 0.082 0.118 0.172 0.257 0.376 dB/ft
0.27 0.39 0.56 0.84 1.23 dB/m

.
Electrical Specification Notes:
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as 0.2 dB per connector.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Temperature Conditioned TNC Male Right Angle to TNC Male Right Angle Low Loss Cable
Using PE-P142LL Coax PE3M0170 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3M0170 REV 1.2 2
