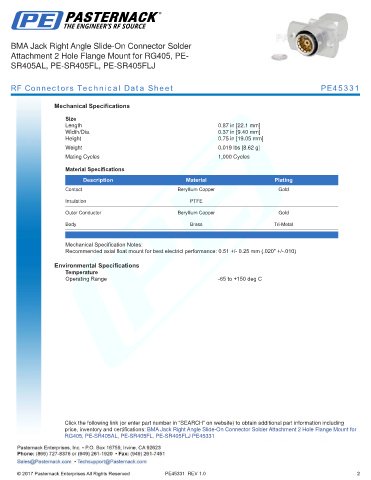

BMA Jack Right Angle Slide-On Connector Solder
Attachment 2 Hole Flange Mount for RG405, PE-
SR405AL, PE-SR405FL, PE-SR405FLJ

RF Connectors Technical Data Sheet PE45331

Mechanical Specifications

Size
Length 0.87 in [22.1 mm]
Width/Dia. 0.37 in [9.40 mm]
Height 0.75 in [19.05 mm]
.
Weight 0.019 lbs [8.62 g]
.
Mating Cycles 1,000 Cycles
Material Specifications
Description Material Plating
Contact Beryllium Copper Gold

Insulation PTFE
Outer Conductor Beryllium Copper Gold

Body Brass Tri-Metal
.
Mechanical Specification Notes:
Recommended axial float mount for best electricl performance: 0.51 +/- 0.25 mm (.020” +/-.010)

Environmental Specifications
Temperature
Operating Range -65 to +150 deg C

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: BMA Jack Right Angle Slide-On Connector Solder Attachment 2 Hole Flange Mount for
RG405, PE-SR405AL, PE-SR405FL, PE-SR405FLJ PE45331
