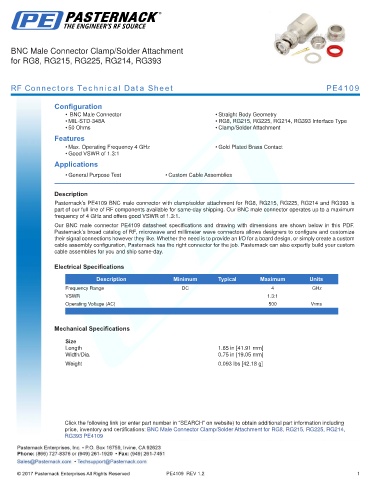

BNC Male Connector Clamp/Solder Attachment
for RG8, RG215, RG225, RG214, RG393

RF Connectors Technical Data Sheet PE4109

Configuration
• BNC Male Connector • Straight Body Geometry
• MIL-STD-348A • RG8, RG215, RG225, RG214, RG393 Interface Type
• 50 Ohms • Clamp/Solder Attachment
Features
• Max. Operating Frequency 4 GHz • Gold Plated Brass Contact
• Good VSWR of 1.3:1
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4109 BNC male connector with clamp/solder attachment for RG8, RG215, RG225, RG214 and RG393 is
part of our full line of RF components available for same-day shipping. Our BNC male connector operates up to a maximum
frequency of 4 GHz and offers good VSWR of 1.3:1.
Our BNC male connector PE4109 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
VSWR 1.3:1
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 1.65 in [41.91 mm]
Width/Dia. 0.75 in [19.05 mm]
.
Weight 0.093 lbs [42.18 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: BNC Male Connector Clamp/Solder Attachment for RG8, RG215, RG225, RG214,
RG393 PE4109

PE4109 REV 1.2 1
