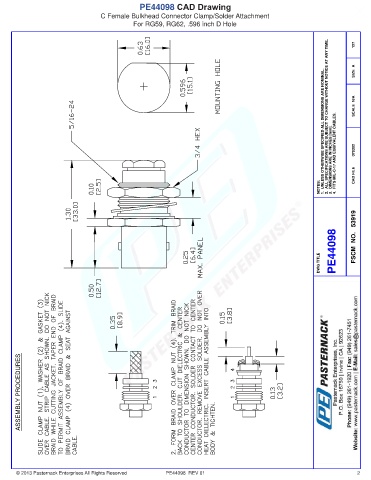

PE44098 CAD Drawing
C Female Bulkhead Connector Clamp/Solder Attachment
For RG59, RG62, .596 inch D Hole

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 070302

NOTES: CAD FILE

PE44098 FSCM NO. 53919

DWG TITLE

ASSEMBLY PROCEDURES

© 2013 Pasternack Enterprises All Rights Reserved PE44098 REV 01 2
