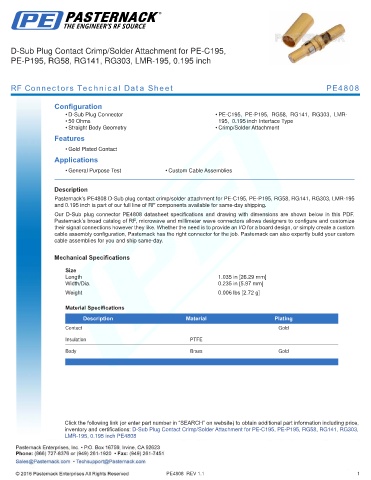

D-Sub Plug Contact Crimp/Solder Attachment for PE-C195,
PE-P195, RG58, RG141, RG303, LMR-195, 0.195 inch

RF Connectors Technical Data Sheet PE4808

Configuration
• D-Sub Plug Connector • PE-C195, PE-P195, RG58, RG141, RG303, LMR-
• 50 Ohms 195, 0.195 inch Interface Type
• Straight Body Geometry • Crimp/Solder Attachment
Features
• Gold Plated Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4808 D-Sub plug contact crimp/solder attachment for PE-C195, PE-P195, RG58, RG141, RG303, LMR-195
and 0.195 inch is part of our full line of RF components available for same-day shipping.
Our D-Sub plug connector PE4808 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.035 in [26.29 mm]
Width/Dia. 0.235 in [5.97 mm]
.
Weight 0.006 lbs [2.72 g]
.
Material Specifications
Description Material Plating
Contact Gold
Insulation PTFE

Body Brass Gold
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: D-Sub Plug Contact Crimp/Solder Attachment for PE-C195, PE-P195, RG58, RG141, RG303,
LMR-195, 0.195 inch PE4808

PE4808 REV 1.1 1
