D-Sub Plug Right Angle Contact Solder Attachment
For PE-SR405AL, PE-SR405FL, RG405

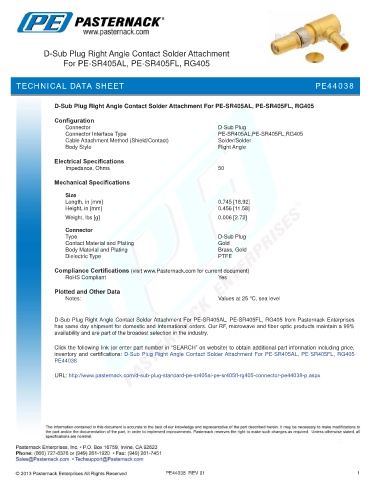

TECHNICAL DATA SHEET PE44038

D-Sub Plug Right Angle Contact Solder Attachment For PE-SR405AL, PE-SR405FL, RG405

Configuration
Connector D-Sub Plug
Connector Interface Type PE-SR405AL,PE-SR405FL,RG405
Cable Attachment Method (Shield/Contact) Solder/Solder
Body Style Right Angle
Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications

Size
Length, in [mm] 0.745 [18.92]
Height, in [mm] 0.456 [11.58]
.
Weight, lbs [g] 0.006 [2.72]

Connector
Type D-Sub Plug
Contact Material and Plating Gold
Body Material and Plating Brass, Gold
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

D-Sub Plug Right Angle Contact Solder Attachment For PE-SR405AL, PE-SR405FL, RG405 from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.
