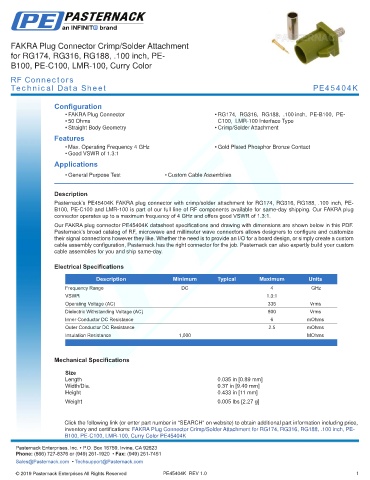

FAKRA Plug Connector Crimp/Solder Attachment
for RG174, RG316, RG188, .100 inch, PE-
B100, PE-C100, LMR-100, Curry Color

RF Connectors
Technical Data Sheet PE45404K

Configuration
• FAKRA Plug Connector • RG174, RG316, RG188, .100 inch, PE-B100, PE-
• 50 Ohms C100, LMR-100 Interface Type
• Straight Body Geometry • Crimp/Solder Attachment
Features
• Max. Operating Frequency 4 GHz • Gold Plated Phosphor Bronze Contact
• Good VSWR of 1.3:1
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE45404K FAKRA plug connector with crimp/solder attachment for RG174, RG316, RG188, .100 inch, PE-
B100, PE-C100 and LMR-100 is part of our full line of RF components available for same-day shipping. Our FAKRA plug
connector operates up to a maximum frequency of 4 GHz and offers good VSWR of 1.3:1.
Our FAKRA plug connector PE45404K datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
VSWR 1.3:1
Operating Voltage (AC) 335 Vrms
Dielectric Withstanding Voltage (AC) 800 Vrms
Inner Conductor DC Resistance 6 mOhms
Outer Conductor DC Resistance 2.5 mOhms
Insulation Resistance 1,000 MOhms
.

Mechanical Specifications

Size
Length 0.035 in [0.89 mm]
Width/Dia. 0.37 in [9.40 mm]
Height 0.433 in [11 mm]
.
Weight 0.005 lbs [2.27 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: FAKRA Plug Connector Crimp/Solder Attachment for RG174, RG316, RG188, .100 inch, PE- -
B100, PE-C100, LMR-100, Curry Color PE45404K Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
