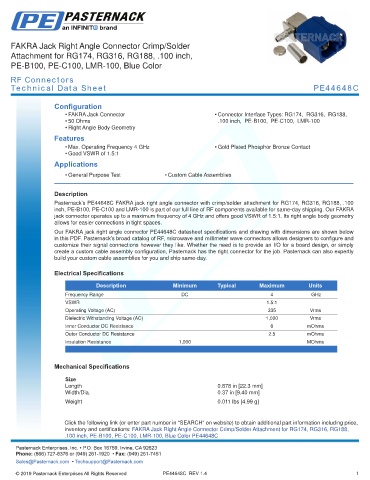

FAKRA Jack Right Angle Connector Crimp/Solder
Attachment for RG174, RG316, RG188, .100 inch,
PE-B100, PE-C100, LMR-100, Blue Color

RF Connectors
Technical Data Sheet PE44648C

Configuration
• FAKRA Jack Connector • Connector Interface Types: RG174, RG316, RG188,
• 50 Ohms .100 inch, PE-B100, PE-C100, LMR-100
• Right Angle Body Geometry
Features
• Max. Operating Frequency 4 GHz • Gold Plated Phosphor Bronze Contact
• Good VSWR of 1.5:1
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44648C FAKRA jack right angle connector with crimp/solder attachment for RG174, RG316, RG188, .100
inch, PE-B100, PE-C100 and LMR-100 is part of our full line of RF components available for same-day shipping. Our FAKRA
jack connector operates up to a maximum frequency of 4 GHz and offers good VSWR of 1.5:1. Its right angle body geometry
allows for easier connections in tight spaces.
Our FAKRA jack right angle connector PE44648C datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
VSWR 1.5:1
Operating Voltage (AC) 335 Vrms
Dielectric Withstanding Voltage (AC) 1,000 Vrms
Inner Conductor DC Resistance 6 mOhms
Outer Conductor DC Resistance 2.5 mOhms
Insulation Resistance 1,000 MOhms
.

Mechanical Specifications

Size
Length 0.878 in [22.3 mm]
Width/Dia. 0.37 in [9.40 mm]
.
Weight 0.011 lbs [4.99 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: FAKRA Jack Right Angle Connector Crimp/Solder Attachment for RG174, RG316, RG188, -
.100 inch, PE-B100, PE-C100, LMR-100, Blue Color PE44648C Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE44648C REV 1.4 1
