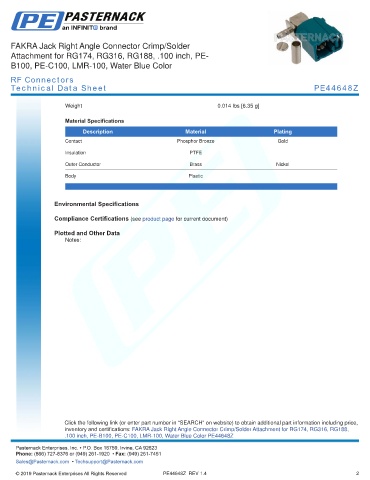

FAKRA Jack Right Angle Connector Crimp/Solder
Attachment for RG174, RG316, RG188, .100 inch, PE-
B100, PE-C100, LMR-100, Water Blue Color
RF Connectors
Technical Data Sheet PE44648Z
Weight 0.014 lbs [6.35 g]
.
Material Specifications
Description Material Plating
Contact Phosphor Bronze Gold
Insulation PTFE
Outer Conductor Brass Nickel
Body Plastic
.
Environmental Specifications
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: FAKRA Jack Right Angle Connector Crimp/Solder Attachment for RG174, RG316, RG188, -
.100 inch, PE-B100, PE-C100, LMR-100, Water Blue Color PE44648Z Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE44648Z REV 1.4 2
