FAKRA Jack Right Angle Connector Solder
Attachment Thru Hole PCB, Violet Color

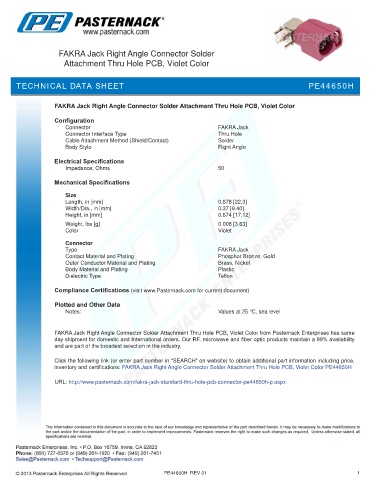

TECHNICAL DATA SHEET PE44650H

FAKRA Jack Right Angle Connector Solder Attachment Thru Hole PCB, Violet Color

Configuration
Connector FAKRA Jack
Connector Interface Type Thru Hole
Cable Attachment Method (Shield/Contact) Solder
Body Style Right Angle
Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications

Size
Length, in [mm] 0.878 [22.3]
Width/Dia., in [mm] 0.37 [9.40]
Height, in [mm] 0.674 [17.12]
.
Weight, lbs [g] 0.008 [3.63]
Color Violet
Connector
Type FAKRA Jack
Contact Material and Plating Phosphor Bronze, Gold
Outer Conductor Material and Plating Brass, Nickel
Body Material and Plating Plastic
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)

Plotted and Other Data
Notes: Values at 25 °C, sea level

FAKRA Jack Right Angle Connector Solder Attachment Thru Hole PCB, Violet Color from Pasternack Enterprises has same
day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability
and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: FAKRA Jack Right Angle Connector Solder Attachment Thru Hole PCB, Violet Color PE44650H

URL: http://www.pasternack.com/fakra-jack-standard-thru-hole-pcb-connector-pe44650h-p.aspx

PE44650H REV 01 1
