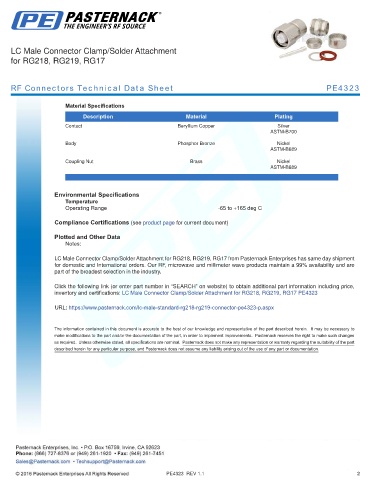

Page 1788 - 1.0/2.3 to SHV RF Connector Datasheets

LC Male Connector Clamp/Solder Attachment
for RG218, RG219, RG17

RF Connectors Technical Data Sheet PE4323

Material Specifications
Description Material Plating
Contact Beryllium Copper Silver
ASTM-B700

Body Phosphor Bronze Nickel
ASTM-B689

Coupling Nut Brass Nickel
ASTM-B689
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
LC Male Connector Clamp/Solder Attachment for RG218, RG219, RG17 from Pasternack Enterprises has same day shipment
for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are
part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: LC Male Connector Clamp/Solder Attachment for RG218, RG219, RG17 PE4323

URL: https://www.pasternack.com/lc-male-standard-rg218-rg219-connector-pe4323-p.aspx

PE4323 REV 1.1 2
