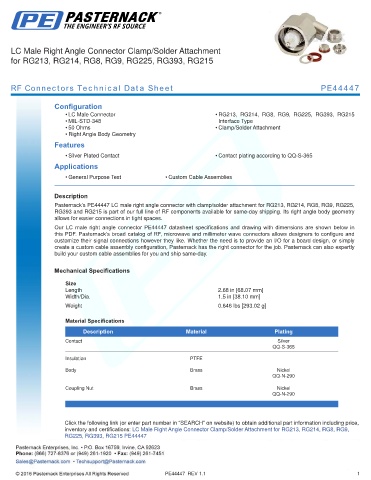

LC Male Right Angle Connector Clamp/Solder Attachment
for RG213, RG214, RG8, RG9, RG225, RG393, RG215

RF Connectors Technical Data Sheet PE44447

Configuration
• LC Male Connector • RG213, RG214, RG8, RG9, RG225, RG393, RG215
• MIL-STD-348 Interface Type
• 50 Ohms • Clamp/Solder Attachment
• Right Angle Body Geometry
Features
• Silver Plated Contact • Contact plating according to QQ-S-365
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44447 LC male right angle connector with clamp/solder attachment for RG213, RG214, RG8, RG9, RG225,
RG393 and RG215 is part of our full line of RF components available for same-day shipping. Its right angle body geometry
allows for easier connections in tight spaces.
Our LC male right angle connector PE44447 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 2.68 in [68.07 mm]
Width/Dia. 1.5 in [38.10 mm]
.
Weight 0.646 lbs [293.02 g]
.
Material Specifications

Description Material Plating
Contact Silver
QQ-S-365
Insulation PTFE

Body Brass Nickel
QQ-N-290
Coupling Nut Brass Nickel
QQ-N-290

.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: LC Male Right Angle Connector Clamp/Solder Attachment for RG213, RG214, RG8, RG9,
RG225, RG393, RG215 PE44447

PE44447 REV 1.1 1
