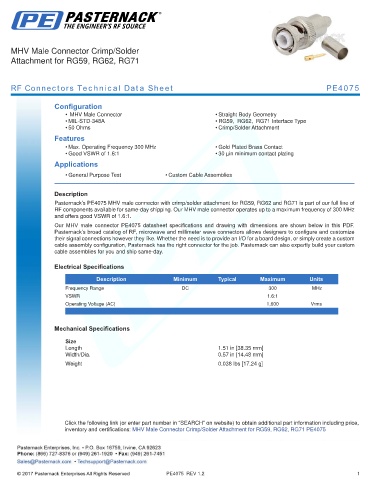

MHV Male Connector Crimp/Solder
Attachment for RG59, RG62, RG71

RF Connectors Technical Data Sheet PE4075

Configuration
• MHV Male Connector • Straight Body Geometry
• MIL-STD-348A • RG59, RG62, RG71 Interface Type
• 50 Ohms • Crimp/Solder Attachment
Features
• Max. Operating Frequency 300 MHz • Gold Plated Brass Contact
• Good VSWR of 1.6:1 • 30 µin minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4075 MHV male connector with crimp/solder attachment for RG59, RG62 and RG71 is part of our full line of
RF components available for same-day shipping. Our MHV male connector operates up to a maximum frequency of 300 MHz
and offers good VSWR of 1.6:1.
Our MHV male connector PE4075 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 300 MHz
VSWR 1.6:1
Operating Voltage (AC) 1,600 Vrms
.

Mechanical Specifications

Size
Length 1.51 in [38.35 mm]
Width/Dia. 0.57 in [14.48 mm]
.
Weight 0.038 lbs [17.24 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MHV Male Connector Crimp/Solder Attachment for RG59, RG62, RG71 PE4075

PE4075 REV 1.2 1
