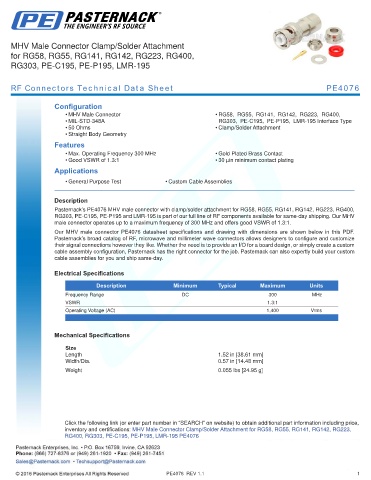

MHV Male Connector Clamp/Solder Attachment
for RG58, RG55, RG141, RG142, RG223, RG400,
RG303, PE-C195, PE-P195, LMR-195

RF Connectors Technical Data Sheet PE4076

Configuration
• MHV Male Connector • RG58, RG55, RG141, RG142, RG223, RG400,
• MIL-STD-348A RG303, PE-C195, PE-P195, LMR-195 Interface Type
• 50 Ohms • Clamp/Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 300 MHz • Gold Plated Brass Contact
• Good VSWR of 1.3:1 • 30 µin minimum contact plating
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4076 MHV male connector with clamp/solder attachment for RG58, RG55, RG141, RG142, RG223, RG400,
RG303, PE-C195, PE-P195 and LMR-195 is part of our full line of RF components available for same-day shipping. Our MHV
male connector operates up to a maximum frequency of 300 MHz and offers good VSWR of 1.3:1.
Our MHV male connector PE4076 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 300 MHz
VSWR 1.3:1
Operating Voltage (AC) 1,400 Vrms
.

Mechanical Specifications

Size
Length 1.52 in [38.61 mm]
Width/Dia. 0.57 in [14.48 mm]
.
Weight 0.055 lbs [24.95 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MHV Male Connector Clamp/Solder Attachment for RG58, RG55, RG141, RG142, RG223,
RG400, RG303, PE-C195, PE-P195, LMR-195 PE4076

PE4076 REV 1.1 1
