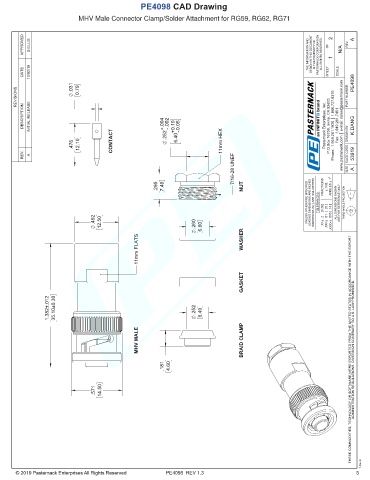

PE4098 CAD Drawing
MHV Male Connector Clamp/Solder Attachment for RG59, RG62, RG71

APPROVED S.ELLIS THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 2 1 N/A REV A

DATE 10/02/19 SHEET OF SCALE PE4098

REVISIONS .031 0.79 PART NUMBER

DESCRIPTION INITIAL RELEASE -.002 Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com K.DANG

.252 +.004 6.40 +0.10 -0.05 DRAWN BY
.476 12.10 CONTACT 11mm HEX
REV. A CAGE CODE 53919
7/16-28 UNEF SIZE A

.295 7.49 NUT FRACTIONS ± 1/32 ANGLES ± 1°
UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

.492 12.50 .260 6.60 .2 [5.08] .X=± .01 [ .25 ] .XX=± .005 [ .13 ] .XXX=±

11mm FLATS WASHER

GASKET

1.382±.012 35.10±0.30 .252 6.40

MHV MALE BRAID CLAMP THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT

ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.
.181 4.60

.571 14.50

-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

T-Rev.B
PE4098 REV 1.3 5
