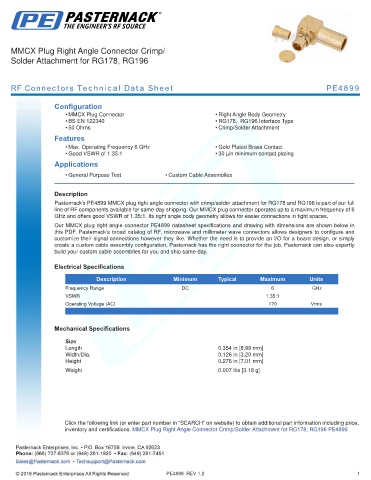

MMCX Plug Right Angle Connector Crimp/
Solder Attachment for RG178, RG196

RF Connectors Technical Data Sheet PE4899

Configuration
• MMCX Plug Connector • Right Angle Body Geometry
• BS EN 122340 • RG178, RG196 Interface Type
• 50 Ohms • Crimp/Solder Attachment
Features
• Max. Operating Frequency 6 GHz • Gold Plated Brass Contact
• Good VSWR of 1.35:1 • 30 µin minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4899 MMCX plug right angle connector with crimp/solder attachment for RG178 and RG196 is part of our full
line of RF components available for same-day shipping. Our MMCX plug connector operates up to a maximum frequency of 6
GHz and offers good VSWR of 1.35:1. Its right angle body geometry allows for easier connections in tight spaces.
Our MMCX plug right angle connector PE4899 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.35:1
Operating Voltage (AC) 170 Vrms
.

Mechanical Specifications

Size
Length 0.354 in [8.99 mm]
Width/Dia. 0.126 in [3.20 mm]
Height 0.276 in [7.01 mm]
.
Weight 0.007 lbs [3.18 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMCX Plug Right Angle Connector Crimp/Solder Attachment for RG178, RG196 PE4899

PE4899 REV 1.2 1
