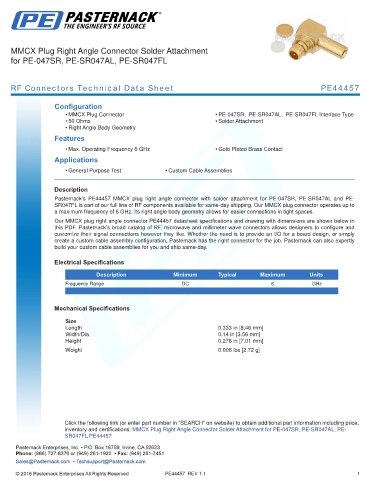

MMCX Plug Right Angle Connector Solder Attachment
for PE-047SR, PE-SR047AL, PE-SR047FL

RF Connectors Technical Data Sheet PE44457

Configuration
• MMCX Plug Connector • PE-047SR, PE-SR047AL, PE-SR047FL Interface Type
• 50 Ohms • Solder Attachment
• Right Angle Body Geometry
Features
• Max. Operating Frequency 6 GHz • Gold Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44457 MMCX plug right angle connector with solder attachment for PE-047SR, PE-SR047AL and PE-
SR047FL is part of our full line of RF components available for same-day shipping. Our MMCX plug connector operates up to
a maximum frequency of 6 GHz. Its right angle body geometry allows for easier connections in tight spaces.
Our MMCX plug right angle connector PE44457 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
.

Mechanical Specifications

Size
Length 0.333 in [8.46 mm]
Width/Dia. 0.14 in [3.56 mm]
Height 0.276 in [7.01 mm]
.
Weight 0.006 lbs [2.72 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMCX Plug Right Angle Connector Solder Attachment for PE-047SR, PE-SR047AL, PE-
SR047FL PE44457

PE44457 REV 1.1 1
