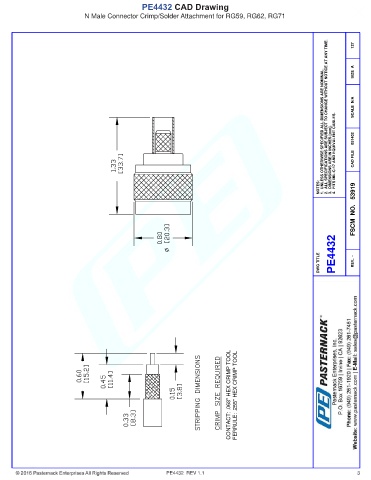

PE4432 CAD Drawing
N Male Connector Crimp/Solder Attachment for RG59, RG62, RG71
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 051402 CAD FILE
NOTES:
FSCM NO. 53919
DWG TITLE PE4432 REV. -
CONTACT: .068" HEX CRIMP TOOL FERRULE: .255" HEX CRIMP TOOL
PE4432 REV 1.1 3
